More Akai EWI3020m Pictures

Just popped the lid on my EWI3020m again as part of a tidy-up and took some pictures. Enjoy!

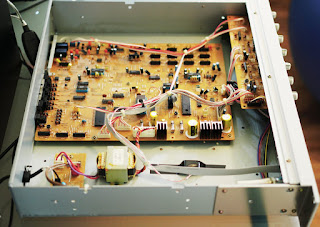

EWI3020m without its lid

EWI3020m without its lid
